Name: Hydrastar T-Bolt Clamp, Hc160, 2 3/8&quot; Nominal Dia, 2.16&quot; Min Dia, 2.47&quot; Max Dia - Min Qty 14
SKU: Hydrastar WBB919435
Availability: InStock

Sale!

Hydrastar T-Bolt Clamp, Hc160, 2 3/8" Nominal Dia, 2.16" Min Dia, 2.47" Max Dia - Min Qty 14

Original price was: $4.57.Current price is: $3.20.

SKU: Hydrastar WBB919435 Categories: Hydraulic Motor Clamps, Hydraulic Motor Parts, Hydraulics Tags: HC160, Hydrastar, Motors & Power Transmission, T-Bolt Clamp, 2-3/8" Nominal Dia, 2.16" Min Dia, 2.47" Max Dia

Buy Quality, Live Better
Nature-friendly materials, 100%.
Free Shipping, No Compromise on Quality
Shop with ease, buy with confidence.

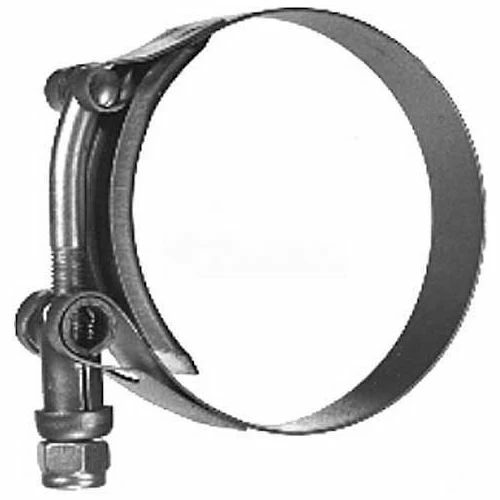

Hydrastar T-Bolt Clamp, HC160, 2 3/8″ Nominal Dia, 2.16″ Min Dia, 2.47″ Max Dia

Heat treated 1/4″-28 UNF-3A plated steel T-bolts with plated steel locknuts

A stainless steel welded liner closes the opening between clamp ends during tightening

A smooth inner band prevents hoses from being cut or bulging and allows greater torquing capability than conventional worm gear clamps

The band also assures equalized 360°clamping force around the hose for tight connections HC095 and HC100 do not have floating bridge

Min Diameter	2.16"
Weight	0.15 lbs
Nominal Diameter	2-3/8 in
Max Diameter	2.47 in
Description	T-Bolt Clamp, 2-3/8" Nominal Dia, 2.16" Min Dia, 2.47" Max Dia
Manufacturers Part Number	HC160
Brand	Hydrastar
