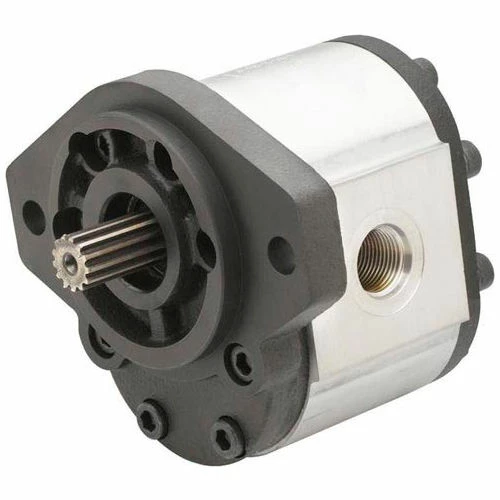

Name: Dynamic Hydraulic Gear Pump 1.52 cu.in/rev, Spline 9 Tooth Shaft, 23.69 GPM at MAX 3600 RPM
SKU: WBB537163
Availability: InStock

Sale!

Dynamic Hydraulic Gear Pump 1.52 cu.in/rev, Spline 9 Tooth Shaft, 23.69 GPM at MAX 3600 RPM

Original price was: $204.95.Current price is: $91.99.

SKU: WBB537163 Categories: Gear Pumps, Hydraulics, Pumps Tags: Aluminium Body and Cast Iron End Plates, GP-F20-25-S9-A, Hydraulic Gear Pump, MAX 3600 RPM rpm, Motors & Power Transmission, SAE A - 2 Bolt Mount, SPLINE 9 TOOTH

Buy Quality, Live Better
Nature-friendly materials, 100%.
Free Shipping, No Compromise on Quality
Shop with ease, buy with confidence.

Dynamic Gp-F20 series hydraulic gear pump offers an aluminium body with cast iron end plate construction, high pressure hydraulic gear pump with 11 displacement sizes from 0.24 to 1.95 cu in/rev³ . Ideal for a wide variety of applications from agriculture markets, construction, mining, turf care, mobile markets and more. Low noise levels and a compact design with standard mounting flange is sae a – 2 bolt makes this your first choice in hydraulic gear pumps.

Port Size	SAE -12 In -10 Out in
Frame Size (Rev)	1.52
RPM	MAX 3600 RPM rpm
Shaft	SPLINE 9 TOOTH
Material	Aluminium Body and Cast Iron End Plates
Mounting Group	SAE A – 2 Bolt Mount
Description	Hydraulic Gear Pump
Manufacturers Part Number	GP-F20-25-S9-A
Gallons per Minute	23.69 GPM At MAX 3600 RPM gal/min
Rotation	Counter Clockwise °
