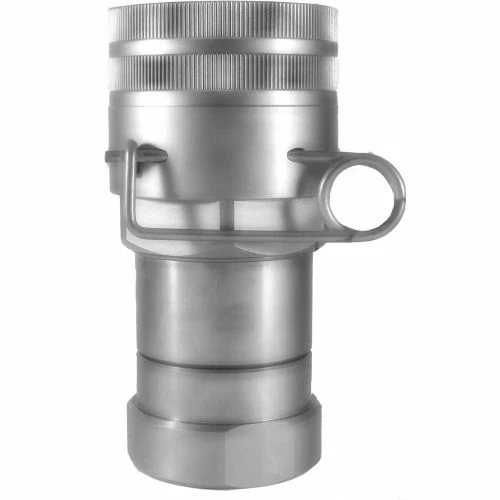

TLX is a flat-face twist lock coupling for the toughest applications in the construction and demolition segment. This super-duty quick connect coupling is designed to work with the highest surge flows and the toughest pressure impulses. TLX is made from high alloy steels with Zinc-Nickel surface treatment for a long life in the harshest conditions. The Series is available in sizes from ¾” to 1 ¼” to cover most applications
| Nominal Flow Diameter | 1 1/4 in |
|---|---|
| Min Burst Pressure | 24366 psi |
| Brand | Cejn |
| Connection B | 1-1/4" Female NPT |
| Connection A | 1-1/4" Body Size |
| Respirator Connection Type | 1 1/4 Female NPT |
| PSI | 6091 psi |
| Manufacturers Part Number | 10-807-6404 |
| Max Operating PSI | 6091 psi |
| Material | High Alloy Steel w/Zinc-Nickel Surface |
| Body Size | 1-1/4 in |
| Seal Material | NBR |
| Temperature Range | -22 +212 °F |
| Style | Hydraulic Screw-to-Connect Nipple |
| Gallons per Minute | 105.7 gal/min |
| Connection Configuration | 1 1/4 Female NPT |
| Series | 807 |
| Interchange | TLX (1 1/4) |
| Certifications | TLX (1 1/4) |
Be the first to review “Cejn® Hydraulic Screw-to-Connect TLX Nipple 1 1/4" Body Size 1 1/4" Female NPT”
