Cejn® Hydraulic Screw-to-Connect TLX Coupling 1 1/4" Body Size 1 1/4" Female NPT

Original price was: $379.95.Current price is: $97.99.

SKU: Cejn WBB2280998 Categories: Couplings, Hoses & Fittings, Hydraulics Tags: -22 +212 °F, 1 1/4 Female NPT, 105.7 gal/min, 807, Cejn, Hydraulic Screw-to-Connect Coupling, Motors & Power Transmission, TLX (1 1/4)

Buy Quality, Live Better
Nature-friendly materials, 100%.
Free Shipping, No Compromise on Quality
Shop with ease, buy with confidence.

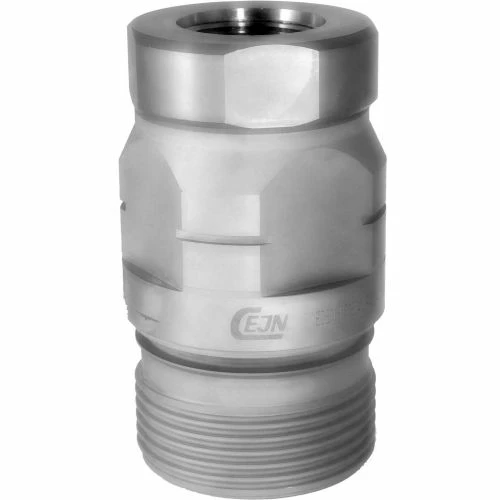

CEJN 10-807-1404 Series 807 Screw-to-Connect Coupling 1 1/4″ Body Size 1 1/4″ Female NPT

TLX is a flat-face twist lock coupling for the toughest applications in the construction and demolition segment. This super-duty quick connect coupling is designed to work with the highest surge flows and the toughest pressure impulses. TLX is made from high alloy steels with Zinc-Nickel surface treatment for a long life in the harshest conditions. The Series is available in sizes from ¾” to 1 ¼” to cover most applications

Nominal Flow Diameter	1 1/4 in
Min Burst Pressure	24366 psi
Brand	Cejn
Connection B	1-1/4" Female NPT
Connection A	1-1/4" Body Size
Respirator Connection Type	1 1/4 Female NPT
PSI	6091 psi
Max Operating PSI	6091 psi
Manufacturers Part Number	10-807-1404
Material	High Alloy Steel w/Zinc-Nickel Surface
Body Size	1-1/4 in
Seal Material	NBR
Temperature Range	-22 +212 °F
Style	Hydraulic Screw-to-Connect Coupling
Gallons per Minute	105.7 gal/min
Connection Configuration	1 1/4 Female NPT
Series	807
Interchange	TLX (1 1/4)
Certifications	TLX (1 1/4)
