Original price was: $31.95.$22.37Current price is: $22.37.
- Buy Quality, Live Better
- Nature-friendly materials, 100%.
- Free Shipping, No Compromise on Quality
- Shop with ease, buy with confidence.

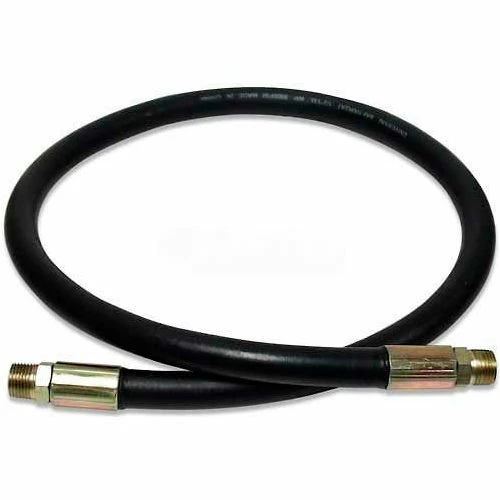

High pressure hydraulic oil lines. Meets/exceeds SAE 100R2AT requirments. These assemblies are 3/8″ ID 100R2 product; each are assembled coiled, sleeved and labeled showing ID, length, specifications and UPC Barcode.
Features
- Universal Hydraulic Hose is for use with water and petroleum based hydraulic fluid in the construction, industrial, and agricultural markets
- On road paving equipment, concrete & asphalt machinery, graders, loaders, tractors, mining, dock & rail yards, etc.
For Use In
- Agricultural, construction & industrial applications
Construction
- Tube: Black Oil-Resistant Synthetic Rubber (nitrile)
- Reinforcement: Two High Tensile Steel Wire
- Braids Cover: Black Oil & Weather Resistant Synthetic Rubber (modified nitrile)
- Temp Range: -40°F to +212°F
- Fittings: Male NPT Connections (2-piece Factory Crimped)
| Hose Inside Diameter | 3/8 in |
|---|---|
| Min Bend Radius | 5-1/8 in |
| Length | 72 in |
| Hose Outside Diameter | 3/4 in |
| Connector Type A x B | Male NPT X Male NPT |
| Working Pressure Rating | 4000 psi |
| Style | Universal 2-Wire |
| Temperature Rating | 40°F to 212°F (-40°C to 100°C) |
| Description | Hydraulic Hose Assembly |
| Manufacturers Part Number | 98398244 |
| Burst PSI | 16000 psi |
| Connection A | 3/8" |
| Connection B | 3/8" |
| Brand | Apache Hose & Belting |
| Certifications | 100R2AT |
Be the first to review “Apache Hose & Belting Apache Hydraulic Hose Assembly 98398244, 100R2AT Cpld., 4000 PSI, 3/8" MNPT, 3/8" Hose ID X 72"L”
